ICS87974I

LVCMOS/LVTTL CLOCK GENERATOR

ICS87974I Datasheet (157.47 KB)

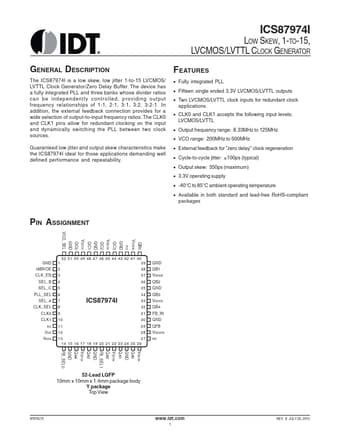

Preview of ICS87974I PDF Datasheet

Datasheet Details

Part number:

ICS87974I

Manufacturer:

Integrated Device Technology

File Size:

157.47 KB

Description:

Lvcmos/lvttl clock generator.

ICS87974I Features

* Fully integrated PLL

* Fifteen single ended 3.3V LVCMOS/LVTTL outputs

* Two LVCMOS/LVTTL clock inputs for redundant clock applications

* CLK0 and CLK1 accepts the following input levels: LVCMOS/LVTTL

* Output frequency range: 8.33MHz to 125MHz

* VCO

ICS87974I General Description

The ICS87974I is a low skew, low jitter 1-to-15 LVCMOS/ LVTTL Clock Generator/Zero Delay Buffer. The device has a fully integrated PLL and three banks whose divider ratios can be independently controlled, providing output frequency relationships of 1:1, 2:1, 3:1, 3:2, 3:2:1. In addition, the externa.
