IRGB4630DPbF Datasheet - International Rectifier

Insulated Gate Bipolar Transistor

IRGB4630DPbF Features

* G Gate C Collector Benefits E Emitter Low VCE(ON) and switching losses High efficiency in a wide range of applications and switching Square RBSOA and maximum junction temperature 175°C Improved reliability due to rugged hard switching performance and high power capability Positive VCE (ON) t

IRGB4630DPbF Datasheet (1.20 MB)

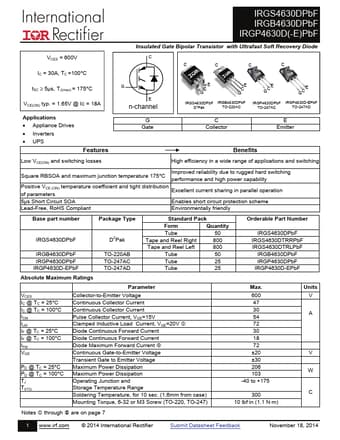

Preview of IRGB4630DPbF PDF

Datasheet Details

Part number:

IRGB4630DPbF

Manufacturer:

International Rectifier

File Size:

1.20 MB

Description:

Insulated gate bipolar transistor.
IRGS4630DPbF IRGB4630DPbF IRGP4630D(-E)PbF Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode VCES = 600V IC = 30A, TC =100°C C C.
