IRGBC30FD2, INSULATED GATE BIPOLAR TRANSISTOR

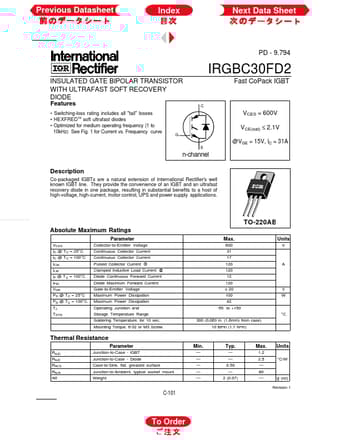

Previous Datasheet Index Next Data Sheet PD - 9.794 IRGBC30FD2 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE .
Co-packaged IGBTs are a natural extension of International Rectifier's well known IGBT line.

datasheet Preview Page 1 from Datasheet4u.com

IRGBC30FD2_InternationalRectifier.pdf

IRGBC30FD2 Datasheet Preview — Preview of IRGBC30FD2 PDF

Datasheet Details

Part number:

IRGBC30FD2

Manufacturer:

International Rectifier

File Size:

297.75 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Features

* Switching-loss rating includes all "tail" losses TM
* HEXFRED soft ultrafast diodes
* Optimized for medium operating frequency (1 to 10kHz) See Fig. 1 for Current vs. Frequency curve C Fast CoPack IGBT VCES = 600V VCE(sat) ≤ 2.1V G @VGE = 15V, IC = 31A E n-channel Descr

Applications

* www. DataSheet4U. com TO-220AB Absolute Maximum Ratings Parameter VCES IC @ TC = 25°C IC @ TC = 100°C ICM ILM IF @ TC = 100°C IFM VGE PD @ TC = 25°C PD @ TC = 100°C TJ TSTG Collector-to-Emitter Voltage Continuous Collector Current Continuous Collector Current Pulsed Collector Current Clamped Induct
