IRGBC30K INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

Description

PD - 9.1071 IRGBC30K INSULATED GATE BIPOLAR TRANSISTOR .
Insulated Gate Bipolar Transistors (IGBTs) from International Rectifier have higher usable current densities than comparable bipolar transistors, whil.

📥 Download Datasheet

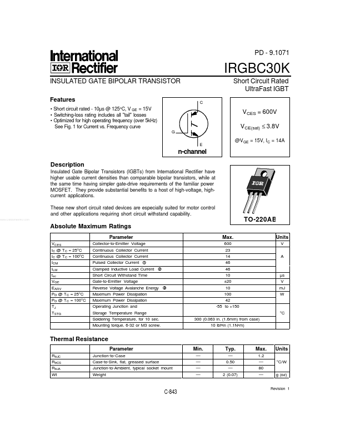

IRGBC30K Datasheet Preview — Preview of IRGBC30K PDF

Datasheet Specifications

Part number: IRGBC30K
Manufacturer: International Rectifier
File Size: 114.90 KB
Datasheet: IRGBC30K_InternationalRectifier.pdf
Description: INSULATED GATE BIPOLAR TRANSISTOR

Features

* Short circuit rated - 10µs @ 125°C, V GE = 15V
* Switching-loss rating includes all "tail" losses
* Optimized for high operating frequency (over 5kHz) See Fig. 1 for Current vs. Frequency curve G E C Short Circuit Rated UltraFast IGBT VCES = 600V VCE(sat) ≤ 3.8V @VGE = 15

Applications

* These new short circuit rated devices are especially suited for motor control and other applications requiring short circuit withstand capability. www. DataSheet4U. com TO-220AB Absolute Maximum Ratings Parameter VCES IC @ T C = 25°C IC @ T C = 100°C ICM ILM tsc VGE EARV PD @ T C = 25°C PD @ T C = 1
