IRGP4066-EPBF, IRGP4066PBF, INSULATED GATE BIPOLAR TRANSISTOR

PD - 97577 INSULATED GATE BIPOLAR TRANSISTOR .

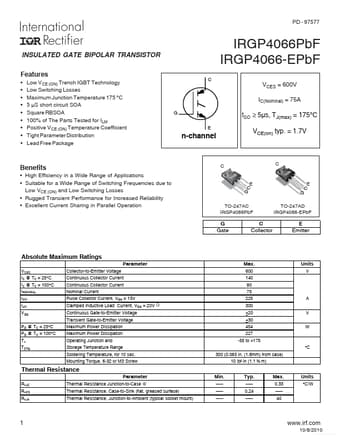

datasheet Preview Page 1 from Datasheet4u.com

IRGP4066PBF_InternationalRectifier.pdf

IRGP4066-EPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRGP4066-EPBF, IRGP4066PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRGP4066-EPBF, IRGP4066PBF

Manufacturer:

International Rectifier

File Size:

285.75 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: IRGP4066-EPBF, IRGP4066PBF.
Please refer to the document for exact specifications by model.

Features

* Low VCE (ON) Trench IGBT Technology Low Switching Losses Maximum Junction Temperature 175 °C 5 μS short circuit SOA Square RBSOA 100% of The Parts Tested for ILM Positive VCE (ON) Temperature Coefficient Tight

Applications

* Suitable for a Wide Range of Switching Frequencies due to Low VCE (ON) and Low Switching Losses
* Rugged Transient Performance for Increased Reliability
* Excellent Current Sharing in Parallel Operation C E C G TO-247AC IRGP4066PbF C E C G TO-247AD IRGP4066-EPbF G Gate
