IRGP4066DPBF, INSULATED GATE BIPOLAR TRANSISTOR

PD - 97576 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE .

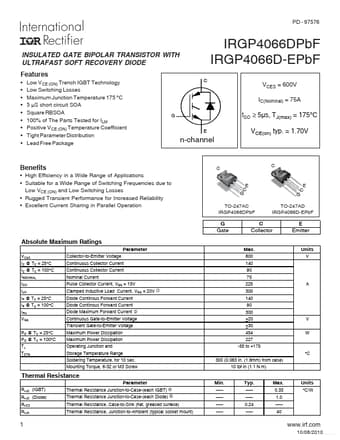

datasheet Preview Page 1 from Datasheet4u.com

IRGP4066DPBF_InternationalRectifier.pdf

IRGP4066DPBF Datasheet Preview — Preview of IRGP4066DPBF PDF

Datasheet Details

Part number:

IRGP4066DPBF

Manufacturer:

International Rectifier

File Size:

332.31 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Features

* Low VCE (ON) Trench IGBT Technology Low Switching Losses Maximum Junction Temperature 175 °C 5 μS short circuit SOA Square RBSOA 100% of The Parts Tested for ILM Positive VCE (ON) Temperature Coefficient Tight

Applications

* Suitable for a Wide Range of Switching Frequencies due to Low VCE (ON) and Low Switching Losses
* Rugged Transient Performance for Increased Reliability
* Excellent Current Sharing in Parallel Operation C E C G TO-247AC IRGP4066DPbF C E C G TO-247AD IRGP4066D-EPbF G Gat
