IRGP4066D, IRGP4066DPBF, INSULATED GATE BIPOLAR TRANSISTOR

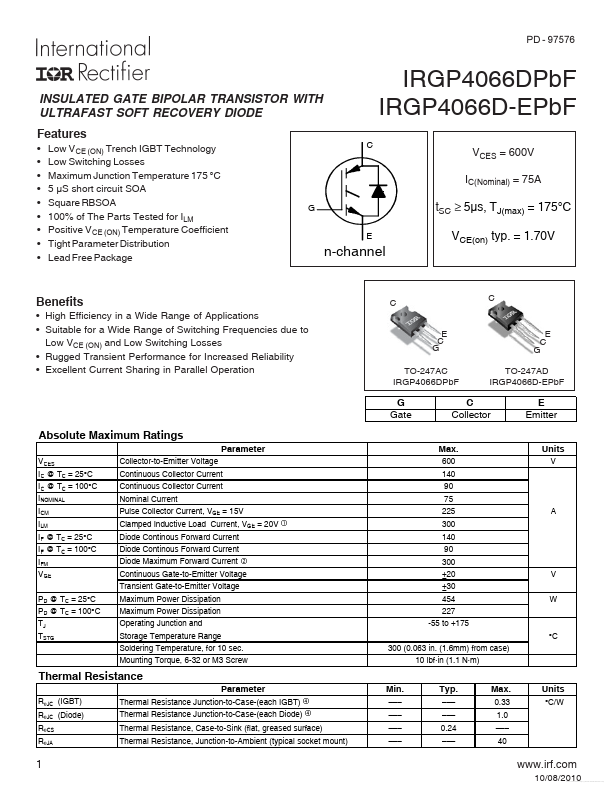

PD - 97576 INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE IRGP4066DPbF IRGP4066D-EPbF .

datasheet Preview Page 1 from Datasheet4u.com

IRGP4066DPBF_InternationalRectifier.pdf

IRGP4066D Datasheet Preview — This datasheet PDF includes multiple part numbers: IRGP4066D, IRGP4066DPBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRGP4066D, IRGP4066DPBF

Manufacturer:

International Rectifier

File Size:

332.31 KB

Description:

INSULATED GATE BIPOLAR TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: IRGP4066D, IRGP4066DPBF.
Please refer to the document for exact specifications by model.

Features

* Low VCE (ON) Trench IGBT Technology
* Low Switching Losses
* Maximum Junction Temperature 175 °C
* 5 μS short circuit SOA
* Square RBSOA
* 100% of The Parts Tested for ILM
* Positive VCE (ON) Temperature Coefficient
* Tight Parameter

Applications

* Suitable for a Wide Range of Switching Frequencies due to Low VCE (ON) and Low Switching Losses
* Rugged Transient Performance for Increased Reliability
* Excellent Current Sharing in Parallel Operation Absolute Maximum Ratings Parameter VCES IC @ TC = 25°C IC @ TC = 100
