IRGP4790-EPbF, IRGP4790PBF, Insulated Gate Bipolar Transistor

VCES = 650V IC = 90A, TC =100°C tSC 5.5µs, TJ(max) = 175°C VCE(ON) typ.= 1.7V @ IC = 75A Applications * Industrial Motor Drive * UPS

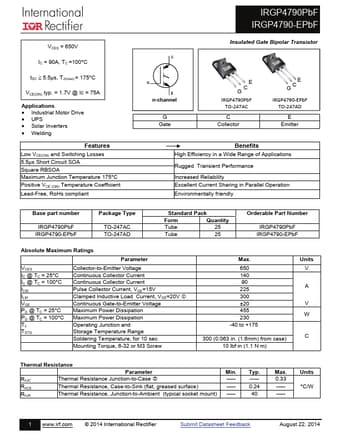

datasheet Preview Page 1 from Datasheet4u.com

IRGP4790PBF-InternationalRectifier.pdf

IRGP4790-EPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRGP4790-EPbF, IRGP4790PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRGP4790-EPbF, IRGP4790PBF

Manufacturer:

International Rectifier

File Size:

772.45 KB

Description:

Insulated Gate Bipolar Transistor

Note:

This datasheet PDF includes multiple part numbers: IRGP4790-EPbF, IRGP4790PBF.
Please refer to the document for exact specifications by model.

Features

* Low VCE(ON) and Switching Losses 5.5µs Short Circuit SOA Square RBSOA Maximum Junction Temperature 175°C Positive VCE (ON) Temperature Coefficient Lead-Free, RoHs compliant IRGP4790PbF IRGP4790-EPbF Insulated Gate Bipolar Transistor C G E n-channel G Gate E GC IRGP4790PbF TO‐247AC C Col

Applications

*  Industrial Motor Drive
*  UPS
*  Solar Inverters
