IRGP4790PBF

Insulated Gate Bipolar Transistor

International Rectifier

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	IRGP4790PBF	IGBT 650V 140A TO-247AC	DigiKey	875	78 units	$3.88	🛒 Buy Now

Download Datasheet (772.45 KB)

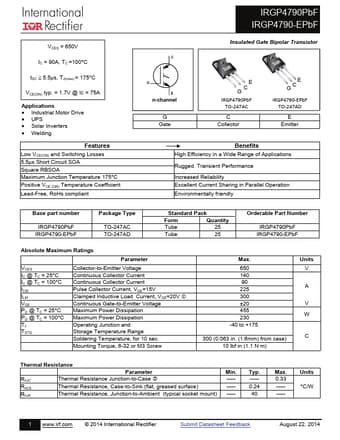

IRGP4790PBF Datasheet Preview — Preview of IRGP4790PBF Datasheet

Datasheet Details

Part number:

IRGP4790PBF

Manufacturer:

International Rectifier

File Size:

772.45 KB

Description:

Insulated gate bipolar transistor.
VCES = 650V IC = 90A, TC =100°C tSC 5.5µs, TJ(max) = 175°C VCE(ON) typ. = 1.7V @ IC = 75A Applic.
ations * Industrial Motor Drive * UPS * Solar Inverters * Welding Features Low VCE(ON) and Switc.

✔ IRGP4790PBF Features

Low VCE(ON) and Switching Losses 5.5µs Short Circuit SOA Square RBSOA Maximum Junction Temperature 175°C Positive VCE (ON) Temperature Coefficient Lead-Free, RoHs complia

✔ IRGP4790PBF Application

 Industrial Motor Drive
 UPS
 Solar Inverters
 Welding Features Low VCE(ON) and Switching Losses 5.5
