SY100E222L

LVECL/LVPECL PROGRAMMABLE CLOCK GENERATOR AND 1:15 FANOUT BUFFER

SY100E222L Features

* Four programmable output banks and 15 total LVPECL-compatible differential outputs

* Pin-compatible, plug-in replacement to MC100LVE222FA

* fMAX clock = 1.5GHz

* 50ps output-to-output skew

* Four output banks with independent ÷1, ÷2 frequency control

* 100k compatible I/O

SY100E222L General Description

Precision Edge® The SY100E222L is a low-skew, low-jitter device capable of receiving a high-speed LVECL/LVPECL input in either a single-ended or differential configuration. For single-ended configurations, a VBB output reference is supplied by the SY100E222L. A 2:1 input multiplexer selects from t.

SY100E222L Datasheet (83.33 KB)

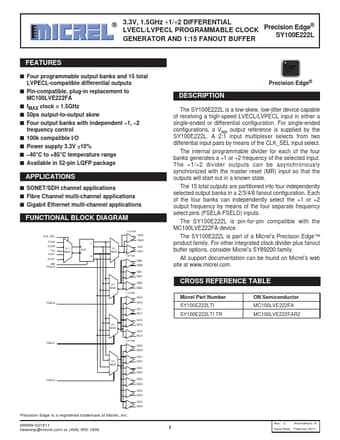

Preview of SY100E222L PDF

Datasheet Details

Part number:

SY100E222L

Manufacturer:

Micrel Semiconductor

File Size:

83.33 KB

Description:

Lvecl/lvpecl programmable clock generator and 1:15 fanout buffer.
Micrel, Inc. 3.3V, 1.5GHz ÷1/÷2 DIFFERENTIAL LVECL/LVPECL PROGRAMMABLE CLOCK Precision Edge® PrecisionSYE1d00gEe2®22L GENERATOR AND 1:15 FANOUT BUF.
