NX3DV2567

Low-ohmic four-pole double-throw analog switch

NX3DV2567 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance for supply path: ‹ 0.5 Ω (typical) at VCC = 1.8 V ‹ 0.45 Ω (typical) at VCC = 2.7 V

* Low ON resistance for data path: ‹ 7 Ω (typical) at VCC = 1.8 V ‹ 6 Ω (typical) at VCC = 2.7 V

* Low ON capac

NX3DV2567 General Description

The NX3DV2567 is a four-pole double-throw analog switch (4PDT) optimized for switching WLAN-SIM supply, data and control signals. It has one digital select input (S) and four switches each with two independent input/outputs (nY0 and nY1) and a common input/output (nZ). Schmitt trigger action at S ma.

NX3DV2567 Datasheet (666.49 KB)

Preview of NX3DV2567 PDF

Datasheet Details

Part number:

NX3DV2567

Manufacturer:

NXP ↗ Semiconductors

File Size:

666.49 KB

Description:

Low-ohmic four-pole double-throw analog switch.

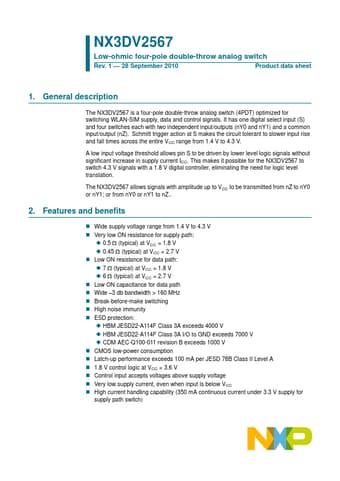

www.DataSheet.co.kr NX3DV2567 Low-ohmic four-pole double-throw analog switch Rev. 1

* 28 September 2010 Product data sheet 1. General descri.
