NX3DV642 - 3-lane high-speed MIPI compatible switch

NXP

📥 Download Datasheet

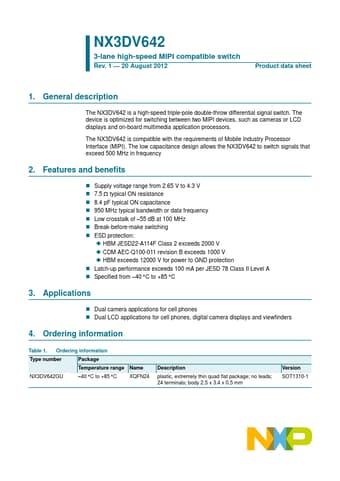

NX3DV642 Datasheet Preview — Preview of NX3DV642 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NX3DV642
Manufacturer: NXP ↗
File Size: 265.37 KB
Datasheet: NX3DV642-NXP.pdf
Description: 3-lane high-speed MIPI compatible switch

NX3DV642 Product details

Description

The NX3DV642 is a high-speed triple-pole double-throw differential signal switch.

Features

Supply voltage range from 2.65 V to 4.3 V.
7.5  typical ON resistance.
8.4 pF typical ON capacitance.
950 MHz typical bandwidth or data frequency.
Low crosstalk of 55 dB at 100 MHz.
Break-before-make switching.
ESD protection:.
HBM JESD22-A114F Class 2 exceeds 2000 V.
CDM AEC-Q100-011 revision B exceeds 1000 V.
HBM exceeds 12000 V for power to GND protection.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level A.
Specified.
