NX3DV221 High-speed USB2.0 switch

NXP Semiconductors

Description

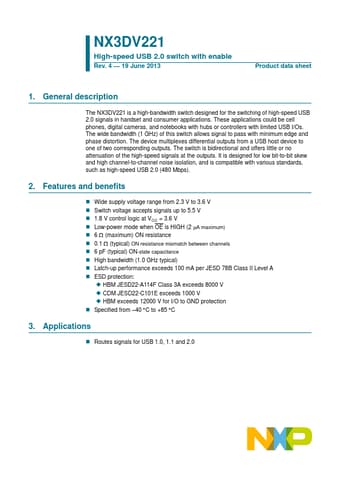

NX3DV221 High-speed USB 2.0 switch with enable Rev.4 * 19 June 2013 Product data sheet 1.General .
The NX3DV221 is a high-bandwidth switch designed for the switching of high-speed USB 2.

📥 Download Datasheet

NX3DV221 Datasheet Preview — Preview of NX3DV221 PDF

Datasheet Specifications

Part number: NX3DV221
Manufacturer: NXP ↗ Semiconductors
File Size: 1.05 MB
Datasheet: NX3DV221_NXPSemiconductors.pdf
Description: High-speed USB2.0 switch

Features

* Wide supply voltage range from 2.3 V to 3.6 V
* Switch voltage accepts signals up to 5.5 V
* 1.8 V control logic at VCC = 3.6 V
* Low-power mode when OE is HIGH (2 A maximum)
* 6  (maximum) ON resistance
* 0.1  (typical) ON resistance mismatch between channels
* 6 pF

Applications

* These applications could be cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (1 GHz) of this switch allows signal to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one o
