NX3DV42 Datasheet, Switch, NXP

✔ NX3DV42 Features

Supply voltage range from 3.0 V to 4.3 V
4  typical ON resistance
7.3 pF typical ON capacitance
950 MHz typical bandwidth or data frequency
Low crosstalk of 3

✔ NX3DV42 Application

Cell phone, PDA, digital camera and notebook
LCD monitor, TV and set-top box NXP Semiconductors NX3DV4

PDF File Details

NXP manufacturer logo and representative part image

Part number:

NX3DV42

Manufacturer:

NXP ↗

File Size:

793.53kb

Download:

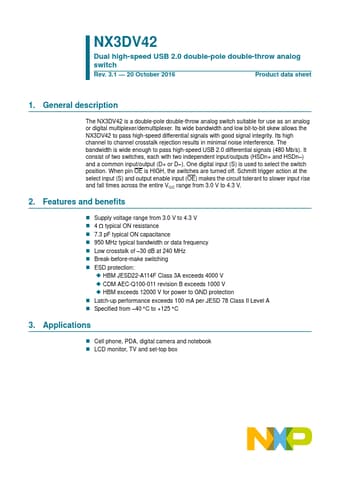

📄 Datasheet

Description:

Dual high-speed usb 2.0 double-pole double-throw analog switch. The NX3DV42 is a double-pole double-throw analog switch suitable for use as an analog or digital multiplexer/demultiplexer. Its wide

📥 Download PDF (793.53kb)
