PDC2601X Datasheet - Potens semiconductor

P-Channel MOSFETs

PDC2601X Features

* -20V,-90A, RDS(ON) =2.3mΩ@VGS = -10V

* Improved dv/dt capability

* Fast switching

* Green Device Available Applications

* Notebook

* Load Switch

* Networking

* Hand-Held Instruments Absolute Maximum Ratings Tc=25℃ unless otherwise noted Symbol VDS VGS ID IDM PD T

PDC2601X General Description

These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Thes.

PDC2601X Datasheet (878.75 KB)

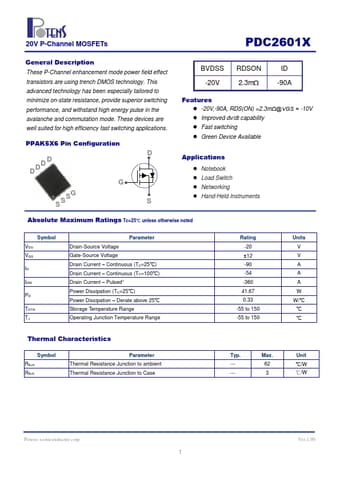

PDC2601X Datasheet Preview — Preview of PDC2601X PDF

Datasheet Details

Part number:

PDC2601X

Manufacturer:

Potens semiconductor

File Size:

878.75 KB

Description:

P-channel mosfets.
