PDC3806T Datasheet, Mosfets, Potens semiconductor

PDC3806T Features

  • Mosfets
  • 30V,40A, RDS(ON) =6.5mΩ@VGS = 10V
  • Improved dv/dt capability
  • Fast switching
  • 100% EAS Guaranteed
  • Green Device Available Applications

PDF File Details

Part number:

PDC3806T

Manufacturer:

Potens semiconductor

File Size:

478.60kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfets. These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been e

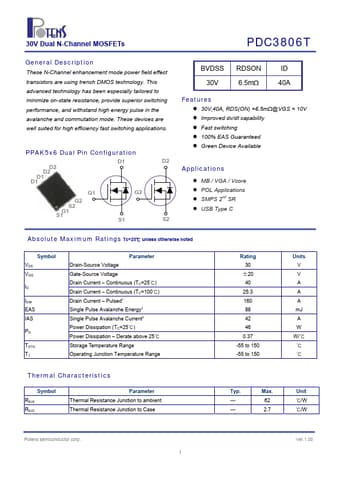

Datasheet Preview: PDC3806T 📥 Download PDF (478.60kb)
Page 2 of PDC3806T Page 3 of PDC3806T

PDC3806T Application

  • Applications PPAK5x6 Dual Pin Configuration D2 D2 D1 D1 D1 G2 S2 S1G1 G1 G2 S1 D2 S2 BVDSS 30V RDSON 6.5m ID 40A Features
  • 30V

TAGS

PDC3806T
Dual
N-Channel
MOSFETs
Potens semiconductor
