PDC3808V Datasheet - Potens semiconductor

PDC3808V - N-Channel MOSFET

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Thes

PDC3808V Features

* 30V,42A, RDS(ON) =10.5mΩ@VGS = 10V

* Improved dv/dt capability

* Fast switching

* 100% EAS Guaranteed

* Green Device Available Applications

* MB / VGA / Vcore

* POL Applications

* SMPS 2nd SR Absolute Maximum Ratings Tc=25℃ unless otherwise noted Symbol VDS VGS ID

PDC3808V-Potenssemiconductor.pdf

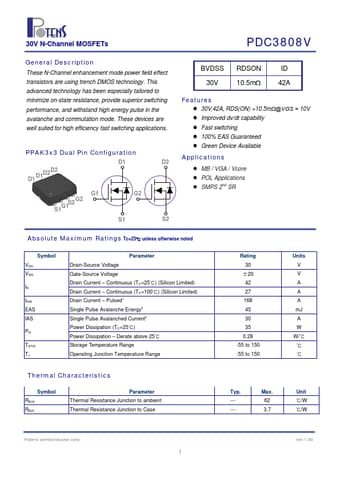

Preview of PDC3808V PDF
PDC3808V Datasheet Preview Page 2 PDC3808V Datasheet Preview Page 3

Datasheet Details

Part number:

PDC3808V

Manufacturer:

Potens semiconductor

File Size:

581.21 KB

Description:

N-channel mosfet.
