TGA2622

40Watt GaN Power Amplifier

TGA2622 Features

* Frequency Range: 9

* 10 GHz

* PSAT: 46dBm (PIN = 18 dBm)

* P1dB: > 40dBm

* PAE: > 46% (PIN = 18 dBm)

* Large Signal Gain: 28 dB

* Small Signal Gain: 32 dB

* Bias: VD = 28 V, IDQ = 290 mA

* Pulsed VD: PW = 100 us and DC = 10%

TGA2622 General Description

9.0

* 10.0 GHz 40 Watt GaN Amplifier (10 Pcs.) Evaluation Board for TGA2622 Data Sheet Rev. A, September 2020 | Subject to change without notice 1 of 14 © 2020 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com TGA2622 ® 9.05

* 10.0 GHz 40 Watt GaN Power Amplifier Abs.

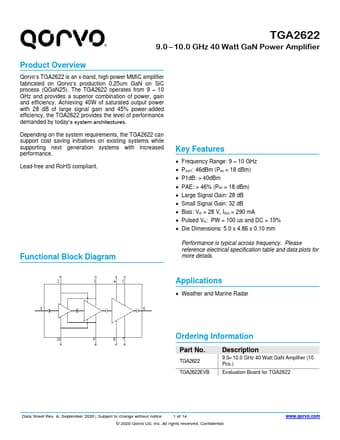

TGA2622 Datasheet (842.71 KB)

Preview of TGA2622 PDF

Datasheet Details

Part number:

TGA2622

Manufacturer:

Qorvo

File Size:

842.71 KB

Description:

40watt gan power amplifier.
TGA2622 ® 9.0 

* 10.0 GHz 40 Watt GaN Power Amplifier Product Overview Qorvo’s TGA2622 is an x-band, high power MMIC amplifier fabricated on.
