STGY50NC60WD - N-Channel IGBT

ST Microelectronics

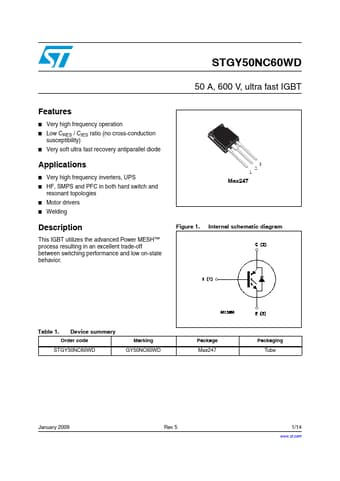

STGY50NC60WD Datasheet Preview — Preview of STGY50NC60WD PDF

Datasheet Details

Part number	STGY50NC60WD
Manufacturer	STMicroelectronics ↗
File Size	533.27 KB
Description	N-Channel IGBT
Datasheet	STGY50NC60WD_STMicroelectronics.pdf

STGY50NC60WD Product details

Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding performances. High frequency inverters SMPS and PFC in both hard switch and resonant topologies Motor drivers, UPS Order codes Part number STGY50NC60WD Marking GY50NC60WD Package Ma

Features

Type STGY50NC60WD.
VCES 600V IC VCE(sat) (max)@25°C @100°C < 2.5V 50A High frequency operation Low CRES / CIES ratio (no cross-conduction susceptbility) Very soft ultra fast recovery antiparallel diode Max247 2 1 3.
