STP80NS04ZB N-CHANNEL POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

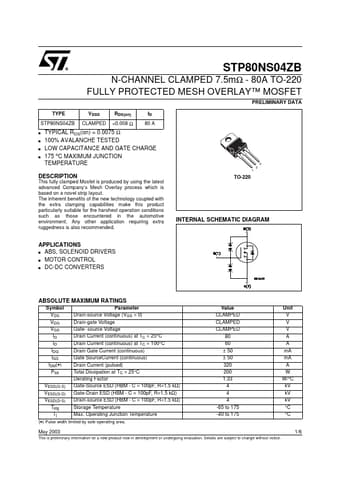

www.DataSheet4U.com N-CHANNEL CLAMPED 7.5mΩ - 80A TO-220 FULLY PROTECTED MESH OVERLAY™ MOSFET PRELIMINARY DATA TYPE STP80NS04ZB s s s s STP80NS04ZB .
This fully clamped Mosfet is produced by using the latest advanced Company’s Mesh Overlay process which is based on a novel strip layout.

📥 Download Datasheet

Preview of STP80NS04ZB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s ABS, SOLENOID DRIVERS s MOTOR CONTROL s DC-DC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDG VGS ID ID IDG IGS IDM(
* ) Ptot VESD(G-S) VESD(G-D) VESD(D-S) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage Gate- source Voltage Drain Current (continuous) at TC = 25°C Dra
