STG60H65FBD7

IGBT

STG60H65FBD7 Features

* Maximum junction temperature: TJ = 175 °C

* High speed switching series

* Minimized tail current

* Very low saturation voltage: VCE(sat) = 1.65 V (typ) @ IC = 60 A

* Safe paralleling

* Tight parameter distribution Applications

* Sola

STG60H65FBD7 General Description

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure. The device is part of the new HB series of IGBTs, which represents an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter. Furthermore, the slig.

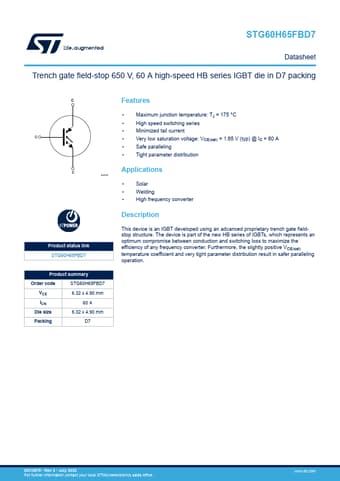

STG60H65FBD7 Datasheet (423.90 KB)

Preview of STG60H65FBD7 PDF

Datasheet Details

Part number:

STG60H65FBD7

Manufacturer:

STMicroelectronics ↗

File Size:

423.90 KB

Description:

Igbt.
STG60H65FBD7 Datasheet Trench gate field-stop 650 V, 60 A high-speed HB series IGBT die in D7 packing C G E EGCD Product status link STG60H65FBD7 P.
