STG6384 - High isolation dual SPST analog switch

STMicroelectronics

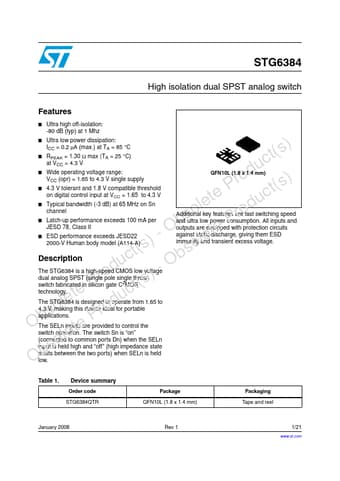

STG6384 Datasheet Preview — Preview of STG6384 PDF

Datasheet Details

Part number	STG6384
Manufacturer	STMicroelectronics ↗
File Size	355.28 KB
Description	High isolation dual SPST analog switch
Datasheet	STG6384_STMicroelectronics.pdf

STG6384 Product details

Description

du - O The STG6384 is a high-speed CMOS low voltage ro ) dual analog SPST (single pole single throw) P t(s switch fabricated in silicon gate C2MOS te c technology.

Features

Ultra high off-isolation: -80 dB (typ) at 1 Mhz.
Ultra low power dissipation: ) ICC = 0.2 μA (max. ) at TA = 85 °C t(s.
RPEAK = 1.30 Ω max (TA = 25 °C) c at VCC = 4.3 V du.
Wide operating voltage range: ro ) VCC (opr) = 1.65 to 4.3 V single supply P t(s.
4.3 V tolerant and 1.8 V compatible threshold te c on digital control input at VCC = 1.65 to 4.3 V le u.
Typical bandwidth (-3 dB) at 65 MHz on Sn d channel so ro.
Latch-up performance exceeds 100 mA per b P.
