STPS630CSFY Datasheet - STMicroelectronics

Automotive dual 3A power Schottky rectifier

STPS630CSFY Features

* AEC-Q101 qualified

* PPAP capable

* 150 °C maximum operation junction temperature

* VRRM guaranteed from -40 °C to 150 °C

* High surge current capability

* ECOPACK2 compliant component Application

* Reverse polarity protection in E.C.U

STPS630CSFY General Description

The STPS630CSFY has been developed for applications requiring an optimized VF and leakage current characteristics. These characteristics make it ideal for use in secondary rectification functions, such as DC/DC converters or freewheeling functions. DS13539 - Rev 1 - October 2020 For further informa.

STPS630CSFY Datasheet (312.16 KB)

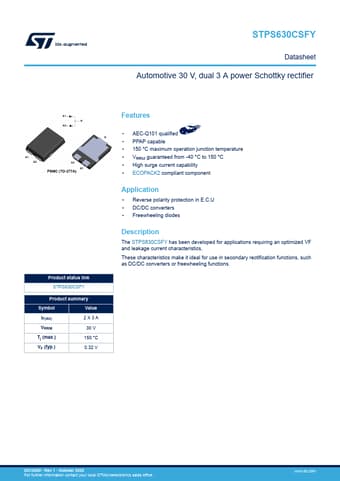

STPS630CSFY Datasheet Preview — Preview of STPS630CSFY PDF

Datasheet Details

Part number:

STPS630CSFY

Manufacturer:

STMicroelectronics ↗

File Size:

312.16 KB

Description:

Automotive dual 3a power schottky rectifier.
STPS630CSFY Datasheet Automotive 30 V, dual 3 A power Schottky rectifier Product status link STPS630CSFY Product summary Symbol Value IF(AV) 2X3.
