STPS6M100DEE

power Schottky rectifier

STPS6M100DEE Features

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* Avalanche capacity specified

* High junction temperature capability

* ECOPACK2 compliant Application

* Cordless appliance

* SSD

* Battery charge

STPS6M100DEE General Description

This Schottky rectifier is designed for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT, this device is intended for use in low voltage, high frequency, inverters, free-wheeling, by-pass diode and polarity protection applications. Its low profile was especially.

STPS6M100DEE Datasheet (188.17 KB)

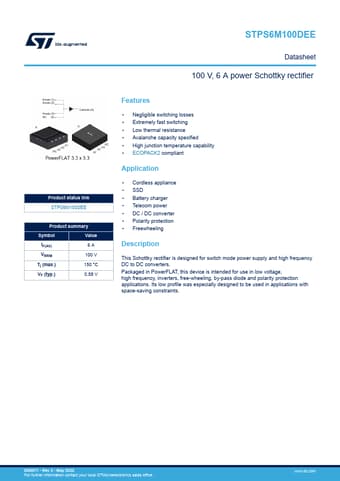

Preview of STPS6M100DEE PDF

Datasheet Details

Part number:

STPS6M100DEE

Manufacturer:

STMicroelectronics ↗

File Size:

188.17 KB

Description:

Power schottky rectifier.
Product status link STPS6M100DEE Product summary Symbol Value IF(AV) 6A VRRM 100 V Tj (max.) 150 °C VF (typ.) 0.58 V STPS6M100DEE Datashee.
