KM736V749

(KM736V749 / KM718V849) 128Kx36 & 256Kx18 Pipelined NtRAM

KM736V749 Features

* 3.3V+0.165V/-0.165V Power Supply.

* I/O Supply Voltage 3.3V+0.165V/-0.165V for 3.3V I/O or 2.5V+0.4V/-0.125V for 2.5V I/O.

* Byte Writable Function.

* Enable clock and suspend operation.

* Single READ/WRITE control pin.

* Self-Timed Write Cycle.

KM736V749 General Description

The KM736V749 and KM718V849 are 4,718,592 bits Synchronous Static SRAMs. The NtRAMTM, or No Turnaround Random Access Memory utilizes all the bandwidth in any combination of operating cycles. Address, data inputs, and all control signals except output enable and linear burst order are synchronized to.

KM736V749 Datasheet (288.41 KB)

Preview of KM736V749 PDF

Datasheet Details

Part number:

KM736V749

Manufacturer:

Samsung Semiconductor

File Size:

288.41 KB

Description:

(km736v749 / km718v849) 128kx36 & 256kx18 pipelined ntram.

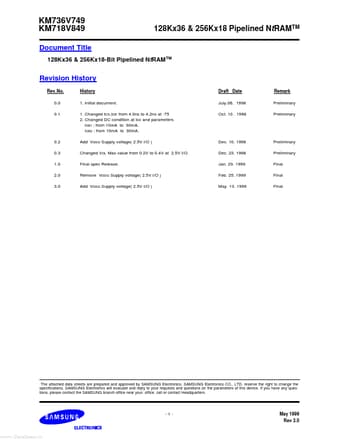

KM736V749 KM718V849 Document Title 128Kx36 & 256Kx18 Pipelined NtRAMTM 128Kx36 & 256Kx18-Bit Pipelined NtRAM TM Revision History Rev. No. 0.0 0.1 H.
