Part number:
SSM6N55NU
Manufacturer:
Toshiba ↗ Semiconductor
File Size:
310.55 KB
Description:
N-channel mosfet.
SSM6N55NU Datasheet (310.55 KB)

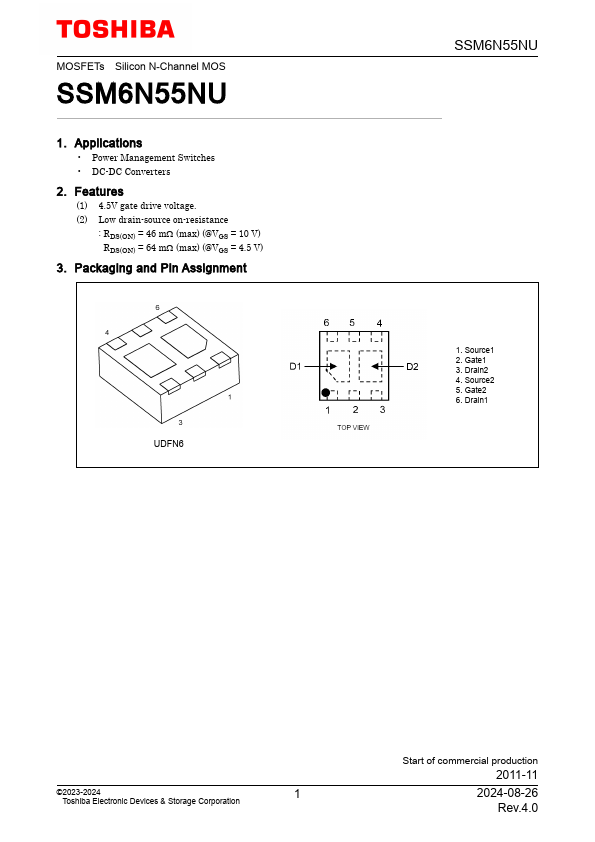

* (1) 4.5V gate drive voltage. (2) Low drain-source on-resistance : RDS(ON) = 46 mΩ (max) (@VGS = 10 V) RDS(ON) = 64 mΩ (max) (@VGS = 4.5 V) 3. Packaging and Pin Assignment UDFN6 SSM6N55NU 1. Source1 2. Gate1 3. Drain2 4. Source2 5. Gate2 6. Drain1 ©2023-2024 1 Toshiba Electronic Devices & Storage
SSM6N55NU Datasheet (310.55 KB)
SSM6N55NU
Toshiba ↗ Semiconductor
310.55 KB
N-channel mosfet.
