Part number:
2SD844
Manufacturer:
File Size:
91.70 KB
Description:
Npn transistor.
* High Collector Current : I C=7A
* Low Collector Saturation Voltage : v CE(sat) =0 - 4v (Max -) (at I C =4A)

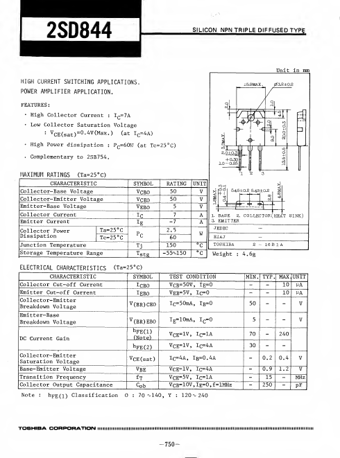

* High Power dissipation : P C=60W (at Tc=25°C) . Complementary to 2SB754. I5.9MAX Unit in mm 0Z.2±O.2 MAXIMUM RATINGS (Ta=25 °C) CHARACTERISTIC Collector-Base V
2SD844
91.70 KB
Npn transistor.
