VBT3045BP - Trench MOS Barrier Schottky Rectifier

VBT3045BP Description

VBT3045BP www.vishay.com Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.30 .

VBT3045BP Features

* TMBS® TO-263AB K
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C 2

VBT3045BP Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTCS IF(DC) VRRM IFSM VF at IF = 30 A TOP max. (AC mode) TJ max. (DC forward current) 30 A 45 V 200 A 0.51 V 150 °C 200 °C MECHANICAL DATA Case: TO-263AB Molding co

📥 Download Datasheet

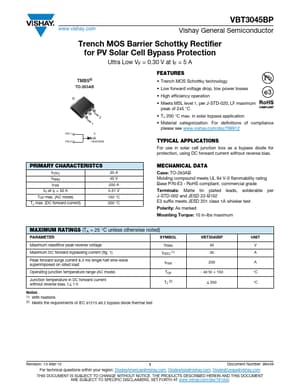

Preview of VBT3045BP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT3045BP
Manufacturer
Vishay ↗
File Size
141.42 KB
Datasheet
VBT3045BP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
