VBT3060C-E3 Dual High Voltage Trench MOS Barrier Schottky Rectifier

VT3060C-E3, VFT3060C-E3, VBT3060C-E3, VIT3060C-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifi.

VBT3060C-E3-Vishay.pdf

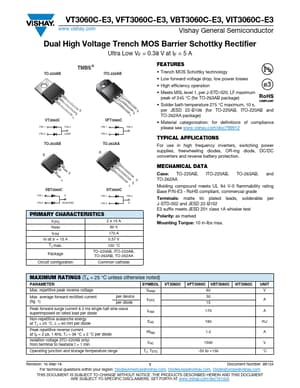

VBT3060C-E3 Datasheet Preview — Preview of VBT3060C-E3 PDF

Datasheet Details

Part number:

VBT3060C-E3

Manufacturer:

Vishay ↗

File Size:

190.17 KB

Description:

Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

Applications

* For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. 2 1 VBT3060C PIN 1 K PIN 2 HEATSINK VIT3060C 3 2 1 PIN 1 PIN 2 PIN 3 K PRIMARY
