VBT3045BP-M3 - Trench MOS Barrier Schottky Rectifier

VBT3045BP-M3 Description

www.vishay.com VBT3045BP-M3 Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0..

VBT3045BP-M3 Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C

VBT3045BP-M3 Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTCS Package TO-263AB IF(DC) VRRM IFSM VF at IF = 30 A TOP max. (AC mode) TJ max. (DC forward current) Diode variation 30 A 45 V 200 A 0.51 V 150 °C 200 °C Singl

📥 Download Datasheet

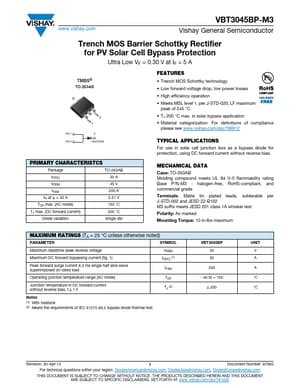

Preview of VBT3045BP-M3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT3045BP-M3
Manufacturer
Vishay ↗
File Size
79.47 KB
Datasheet
VBT3045BP-M3-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
