VBT3060G-E3 Datasheet (Vishay) - Dual High Voltage Trench MOS Barrier Schottky Rectifier

VBT3060G-E3, Dual High Voltage Trench MOS Barrier Schottky Rectifier

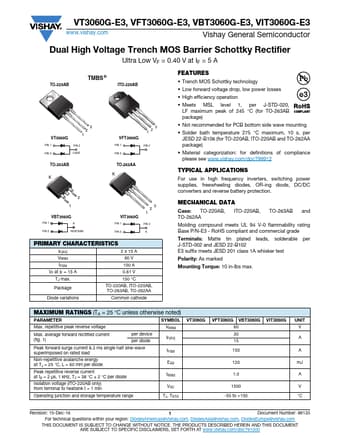

VT3060G-E3, VFT3060G-E3, VBT3060G-E3, VIT3060G-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.40 V at IF = 5 A TO-220AB TMBS ® ITO-220AB VT3060G 3 2 1 PIN 1 PIN 2 PIN 3 CASE TO-263AB K VFT3060G 123 PIN 1 PIN 2 PIN 3 TO-262AA K 2 1 VBT3060G PIN 1 K PIN 2 HEATSINK VIT3060G 3 2 1 PIN 1 PIN 2 PIN 3 K PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TJ max.

Package 2 x 15 A 60 V 150 A 0

VBT3060G-E3 Features

* Trench MOS Schottky technology

* Low forward voltage drop, low power losses

* High efficiency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)

* Not recommended for PCB bottom side wave mounting

* Solder
