VBT4045BP - Trench MOS Barrier Schottky Rectifier

VBT4045BP Description

VBT4045BP www.vishay.com Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.28 .

VBT4045BP Features

* TO-263AB K
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C 2

VBT4045BP Applications

* PIN 1 PIN 2 K HEATSINK For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(DC) VRRM IFSM VF at IF = 40 A TOP max. (AC mode) TJ max. (DC forward current) 40 A 45 V 240 A 0.51 V 150 °C 200 °C

📥 Download Datasheet

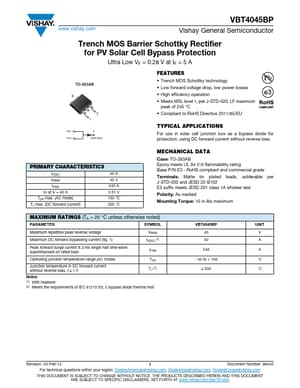

Preview of VBT4045BP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT4045BP
Manufacturer
Vishay ↗
File Size
149.04 KB
Datasheet
VBT4045BP_Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
