VBT4045C-E3, Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com VBT4045C-E3 Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.28 V at IF = 5.0 A .

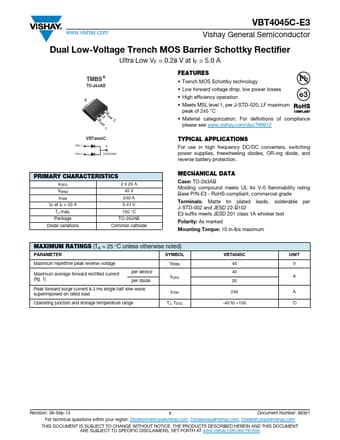

datasheet Preview Page 1 from Datasheet4u.com

VBT4045C-E3-Vishay.pdf

VBT4045C-E3 Datasheet Preview — Preview of VBT4045C-E3 PDF

Datasheet Details

Part number:

VBT4045C-E3

Manufacturer:

Vishay ↗

File Size:

82.22 KB

Description:

Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. Package 2 x 20 A 45 V 240 A 0.41 V 150 °C TO-263AB Diode variations Common cathode MECHANICA
