EDI7F4331MC

4x1Mx32 FLASH MODULE

EDI7F4331MC Features

* n n n n n 4x1Mx32 Based on AMD - AM29F080 Flash Device Fast Read Access Time - 80ns 5V Only Reprogramming Sector Erase Architecture n n n n n Uniform sectors of 64 Kbytes each Any combination of sectors can be erased Also supports full chip erase Hardware method that disables any combination of sect

EDI7F4331MC General Description

The EDI7F4331MC is organized as four banks of 1Mx32. The module is based on AMDs AM29F080 - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 80 and 150ns allowing for operation of high-speed microprocessors without wait states. Sector .

EDI7F4331MC Datasheet (253.84 KB)

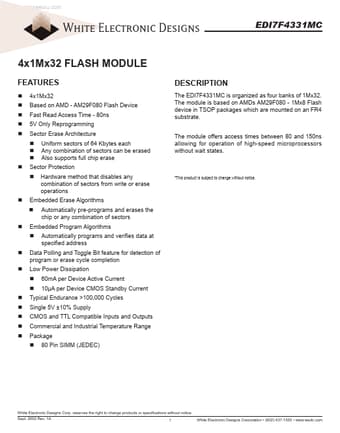

Preview of EDI7F4331MC PDF

Datasheet Details

Part number:

EDI7F4331MC

Manufacturer:

White Electronic Designs

File Size:

253.84 KB

Description:

4x1mx32 flash module.
