EDI7F4342MV

4x2Mx32 FLASH MODULE

EDI7F4342MV Features

* n n n n 4x2Mx32 Based on Intel's E28F016S3 Flash Device Fast Read Access Time - 120ns Flexible Smart Voltage n n n n n n n n n n n 2.7-3.6V Program Erase 2.7-3.6V Read Operation 12Vpp Fast Production Programming 30mA per Device Active Current 20µA per Device CMOS Standby Current EDI7F4342MV DESCRI

EDI7F4342MV General Description

The EDI7F4342MV is organized as four banks of 2Mx32. The module is based on Intel's E28F016S3 - 2Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 120 and 150ns allowing for operation of high-speed microprocessors without wait states. Lo.

EDI7F4342MV Datasheet (252.10 KB)

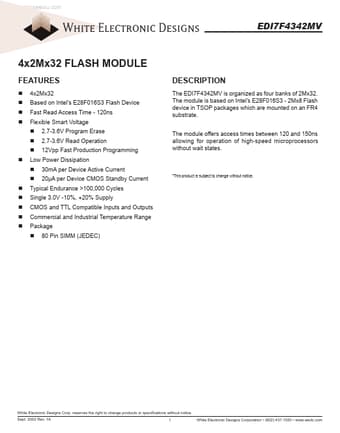

Preview of EDI7F4342MV PDF

Datasheet Details

Part number:

EDI7F4342MV

Manufacturer:

White Electronic Designs

File Size:

252.10 KB

Description:

4x2mx32 flash module.
