EDI7F4341MC

4x1Mx32 FLASH MODULE

EDI7F4341MC Features

* n 4x1Mx32 n Based on Intel's E28F008SA Flash Device n Fast Read Access Time - 90ns n 5- Volt-Only Reprogramming n Low Power Dissipation • 60mA per Device Active Current • 10µA per Device CMOS Standby Current n Typical Endurance >100,000 Cycles n Single 5 Volt ±10% Supply n CMOS and TTL Compatible In

EDI7F4341MC General Description

The EDI7F4341MC is organized as four banks of 1Mx32. The module is based on Intel's E28F008SA - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 90 and 150ns allowing for operation of high-speed microprocessors without wait states. FIG.

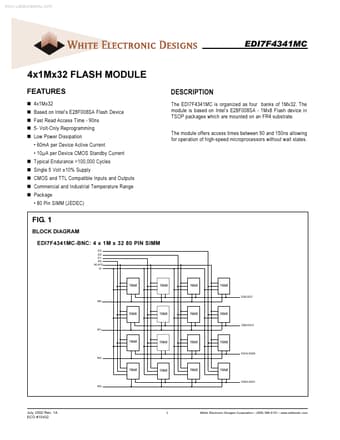

EDI7F4341MC Datasheet (467.76 KB)

Preview of EDI7F4341MC PDF

Datasheet Details

Part number:

EDI7F4341MC

Manufacturer:

White Electronic Designs

File Size:

467.76 KB

Description:

4x1mx32 flash module.
