EDI7F4331MV

4x1Mx32 FLASH MODULE

EDI7F4331MV Features

* n n n n n 4x1Mx32 Based on AMD - AM29F008T Flash Device Fast Read Access Time - 80ns 3.3V Only Reprogramming Flexible, Sector Architecture n n n n n One 16Kbyte, two 8Kbyte, one 32Kbyte and fifteen 64Kbyte sectors Any combination of sectors can be erased Also supports full chip erase Hardware method

EDI7F4331MV General Description

The EDI7F4331MV is organized as four banks of 1Mx32. The module is based on AMDs AM29LV008T - 1Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 80 and 150ns allowing for operation of high-speed microprocessors without wait states. Secto.

EDI7F4331MV Datasheet (253.97 KB)

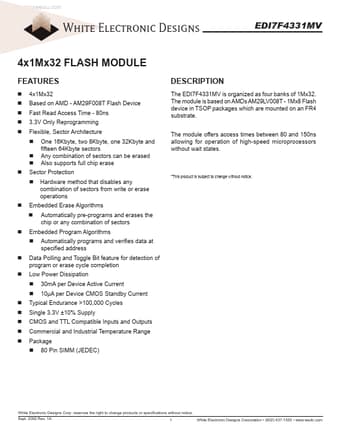

Preview of EDI7F4331MV PDF

Datasheet Details

Part number:

EDI7F4331MV

Manufacturer:

White Electronic Designs

File Size:

253.97 KB

Description:

4x1mx32 flash module.
