EDI7F4342MC

4x2Mx32 FLASH MODULE

EDI7F4342MC Features

* n n n n n 4x2Mx32 Based on Sharp's LH28F016SU Flash Device Fast Read Access Time - 80ns 5V Only Reprogramming Low Power Dissipation n n n n n n n 60mA per Device Active Current 10µA per Device CMOS Standby Current EDI7F4342MC DESCRIPTION The EDI7F4342MC is organized as four banks of 2Mx32. The mod

EDI7F4342MC General Description

The EDI7F4342MC is organized as four banks of 2Mx32. The module is based on Sharp's LH28F016SU - 2Mx8 Flash device in TSOP packages which are mounted on an FR4 substrate. The module offers access times between 80 and 150ns allowing for operation of high-speed microprocessors without wait states. Ty.

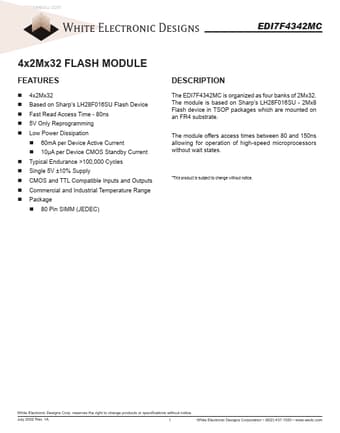

EDI7F4342MC Datasheet (251.94 KB)

Preview of EDI7F4342MC PDF

Datasheet Details

Part number:

EDI7F4342MC

Manufacturer:

White Electronic Designs

File Size:

251.94 KB

Description:

4x2mx32 flash module.
