ZL30414

SONET/SDH Clock Multiplier PLL

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Microchip Technology Inc ZL30414QGG1 IC PLL SONET/SDH CLK MULT 64TQFP DigiKey 0 160 units
$65.13

ZL30414 Datasheet (448.75 KB)

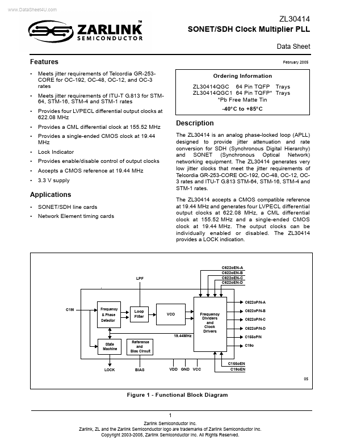

Preview of ZL30414 PDF

Datasheet Details

Part number:

ZL30414

Manufacturer:

Zarlink Semiconductor

File Size:

448.75 KB

Description:

Sonet/sdh clock multiplier pll.

ZL30414 Features

* Meets jitter requirements of Telcordia GR-253CORE for OC-192, OC-48, OC-12, and OC-3 rates Meets jitter requirements of ITU-T G.813 for STM64, STM-16, STM-4 and STM-1 rates Provides four LVPECL differential output clocks at 622.08 MHz Provides a CML differential clock at 155.52 MHz Provide

ZL30414 General Description

The ZL30414 is an analog phase-locked loop (APLL) designed to provide jitter attenuation and rate conversion for SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) networking equipment. The ZL30414 generates very low jitter clocks that meet the jitter requirements of Telcord.
