F59D1G161LB-45BG2M, F59D1G81LB-45TG2M 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory

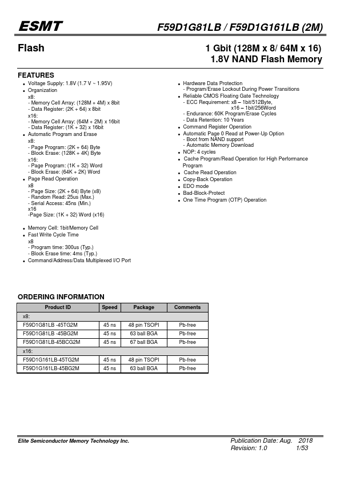

📥 Download Datasheet Datasheet Preview Page 1

Description

ESMT Flash .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: F59D1G161LB-45BG2M, F59D1G81LB-45TG2M. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
F59D1G161LB-45BG2M, F59D1G81LB-45TG2M
Manufacturer
ESMT
File Size
1.75 MB
Datasheet
F59D1G81LB-45TG2M-ESMT.pdf
Description
1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory
Note
This datasheet PDF includes multiple part numbers: F59D1G161LB-45BG2M, F59D1G81LB-45TG2M.
Please refer to the document for exact specifications by model.

Features

* Voltage Supply: 1.8V (1.7 V ~ 1.95V)
* Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit
* Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Era
