F59D1G161MB-45BG2M - 1.8V NAND Flash Memory

Product Overview

ESMT

Part number	F59D1G161MB-45BG2M
Manufacturer	ESMT
File Size	2.37 MB
Description	1.8V NAND Flash Memory
Datasheet	F59D1G161MB-45BG2M Datasheet
Note	This datasheet PDF includes multiple part numbers: F59D1G161MB-45BG2M, F59D1G81MB-45TG2M. Please refer to the document for exact specifications by model.

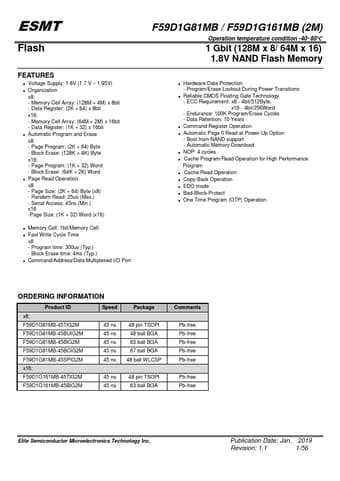

Additional preview pages of the F59D1G161MB-45BG2M datasheet.

The Device is a 128Mx8bit with spare 4Mx8bit capacity.

Voltage Supply: 1.8V (1.7 V ~ 1.95V).
Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit.
Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte x16: - Page Program: (1K + 32) Word - Block Erase: (64K + 2K) Word.
Page Read Operation x8 - Page Size: (2K + 64) Byte (x8) - Random Read: 25us (Max. ) - Serial Access: 45ns (.
