F59D4G81A - 4 Gbit (512M x 8 / 256M x 16) 1.8V NAND Flash Memory

Product Overview

Elite Semiconductor

Part number	F59D4G81A
Manufacturer	Elite Semiconductor
File Size	1.54 MB
Description	4 Gbit (512M x 8 / 256M x 16) 1.8V NAND Flash Memory
Datasheet	F59D4G81A Datasheet

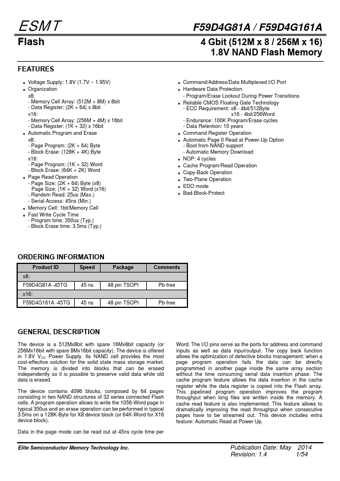

Additional preview pages of the F59D4G81A datasheet.

The device is a 512Mx8bit with spare 16Mx8bit capacity (or 256Mx16bit with spare 8Mx16bit capacity).

Voltage Supply: 1.8V (1.7V ~ 1.95V).
Organization x8: - Memory Cell Array: (512M + 8M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (256M + 4M) x 16bit - Data Register: (1K + 32) x 16bit.
Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte x16: - Page Program: (1K + 32) Word - Block Erase: (64K + 2K) Word.
Page Read Operation - Page Size: (2K + 64) Byte (x8) Page Size: (1K + 32) Word (x16) - Random Read: 25us (.
