F59D4G81XB

1.8V NAND Flash Memory

F59D4G81XB Datasheet (2.44 MB)

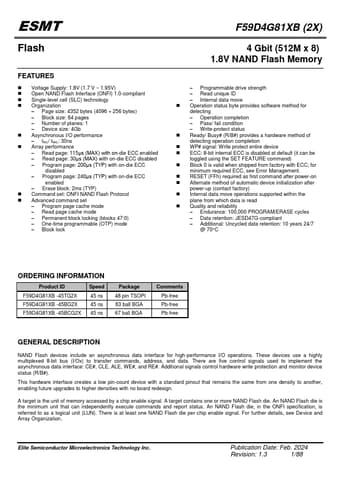

Preview of F59D4G81XB PDF Datasheet

Datasheet Details

Part number:

F59D4G81XB

Manufacturer:

ESMT

File Size:

2.44 MB

Description:

1.8v nand flash memory

F59D4G81XB Features

* Voltage Supply: 1.8V (1.7 V ~ 1.95V)

* Open NAND Flash Interface (ONFI) 1.0-compliant

* Single-level cell (SLC) technology

* Organization

* Page size: 4352 bytes (4096 + 256 bytes)

* Block size: 64 pages

* Number of planes: 1

* Device size: 4Gb

F59D4G81XB General Description

NAND Flash devices include an asynchronous data interface for high-performance I/O operations. These devices use a highly multiplexed 8-bit bus (I/Ox) to transfer commands, address, and data. There are five control signals used to implement the asynchronous data interface: CE#, CLE, ALE, WE#, and RE.
