F59D1G161MA-45BG2L - 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory

This page provides the datasheet information for the F59D1G161MA-45BG2L, a member of the F59D1G81MA-45TG2L 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory family.

Datasheet Summary

Features

z Voltage Supply: 1.8V (1.7 V ~ 1.95V) z Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit z Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte x16: - Page Program: (1K + 32) Word - Block Erase: (64K + 2K) Word z Page Read Operation - Page Size: (2K + 64) Byte (x8) Page Size: (1K + 32) Word (x16) - Random Read: 25us (Max. ) - Serial A.

Datasheet Details

Part number	F59D1G161MA-45BG2L
Manufacturer	ESMT
File Size	1.50 MB
Description	1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory
Datasheet	F59D1G161MA-45BG2L Datasheet

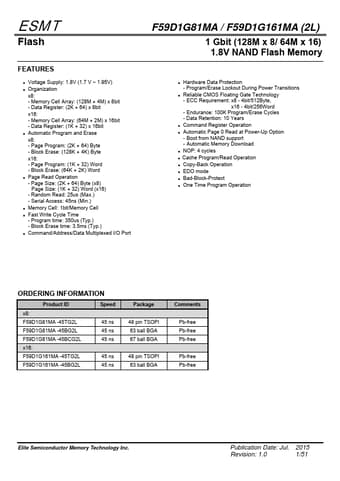

Additional preview pages of the F59D1G161MA-45BG2L datasheet.

📁 Similar Datasheet

F59D1G161A - 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59D1G81A - 1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59D2G161A - 2 Gbit (256M x 8 / 128M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59D2G81A - 2 Gbit (256M x 8 / 128M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59D4G161A - 4 Gbit (512M x 8 / 256M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59D4G81A - 4 Gbit (512M x 8 / 256M x 16) 1.8V NAND Flash Memory (Elite Semiconductor)

F59L1G81A - 1 Gbit (128M x 8) 3.3V NAND Flash Memory (Elite Semiconductor)

F59L2G81A - 2 Gbit (256M x 8) 3.3V NAND Flash Memory (Elite Semiconductor)

F59L4G81A - 4 Gbit (512M x 8) 3.3V NAND Flash Memory (Elite Semiconductor)

F59L512M81A - 512Mbit (64M x 8) 3.3V NAND Flash Memory (Elite Semiconductor)

Full PDF Text Transcription

Click to expand full text

ESMT Flash FEATURES z Voltage Supply: 1.8V (1.7 V ~ 1.95V) z Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit z Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte x16: - Page Program: (1K + 32) Word - Block Erase: (64K + 2K) Word z Page Read Operation - Page Size: (2K + 64) Byte (x8) Page Size: (1K + 32) Word (x16) - Random Read: 25us (Max.) - Serial Access: 45ns (Min.) z Memory Cell: 1bit/Memory Cell z Fast Write Cycle Time - Program time: 350us (Typ.) - Block Erase time: 3.5ms (Typ.) z Command/Address/Data Multiplexed I/O Port F59D1G81MA / F59D1G161MA (2L) 1 Gbit (128M x 8/ 64M x 16) 1.
