IXFN36N100 Power MOSFET

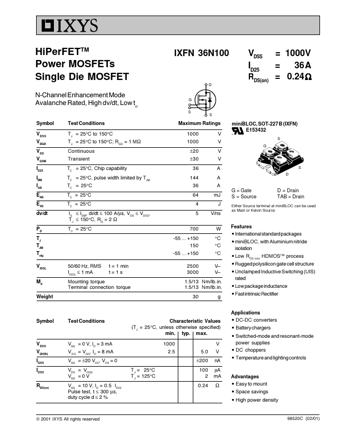

HiPerFETTM Power MOSFETs Single Die MOSFET N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low trr Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg VISOL Md Weight 50/60 Hz, RMS IISOL ≤ 1 mA t = 1 min t=1s Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C, Chip capability TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, RG = 2 Ω TC = 25°C IXFN 36N100 .

IXFN36N100 Features

* International standard packages

* miniBLOC, with Aluminium nitride isolation

* Low RDS (on) HDMOSTM process

* Rugged polysilicon gate cell structure

* Unclamped Inductive Switching (UIS) rated Mounting torque Terminal connection torque 1.5/13 Nm/lb.in. 1
