MRF8S9102NR3 Datasheet - Freescale Semiconductor

MRF8S9102NR3 RF Power Field Effect Transistor

Freescale Semiconductor Technical Data RF Power Field Effect Transistor N Channel Enhancement Mode Lateral MOSFET Designed for CDMA base station applications with frequencies from 865 to 960 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats. Typical Single Carrier W CDMA Performance: VDD = 28 Volts, IDQ = 750 mA, Pout = 28 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR =.

MRF8S9102NR3-FreescaleSemiconductor.pdf

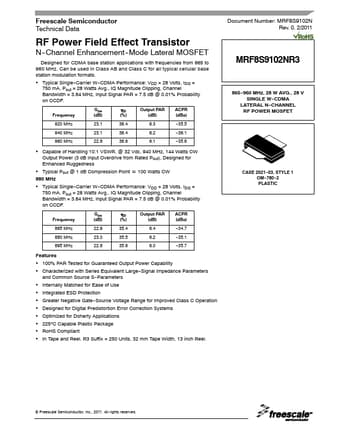

Preview of MRF8S9102NR3 PDF
MRF8S9102NR3 Datasheet Preview Page 2 MRF8S9102NR3 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF8S9102NR3

Manufacturer:

Freescale Semiconductor

File Size:

803.11 KB

Description:

Rf power field effect transistor.
