STP25N10F7 Datasheet, Mosfet, INCHANGE

STP25N10F7 Features

  • Mosfet
  • Drain Current
      –ID= 25A@ TC=25℃
  • Drain Source Voltage- : VDSS= 100V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.035Ω(Max)
  • 100%

PDF File Details

Part number:

STP25N10F7

Manufacturer:

INCHANGE

File Size:

233.34kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • These devices utilize the 7th generation of design rules of ST Proprietary,with a new gate structure.
  • Low Drain-Sou

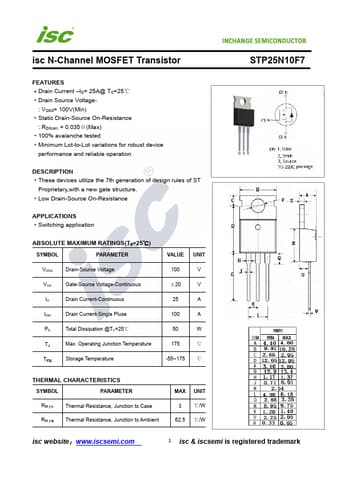

  • Datasheet Preview: STP25N10F7 📥 Download PDF (233.34kb)
    Page 2 of STP25N10F7

    STP25N10F7 Application

    • Applications
    • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
