IXTQ160N10T - Power MOSFET

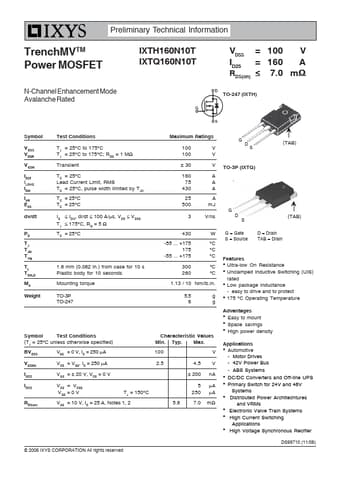

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH160N10T IXTQ160N10T VDSS = ID25 = RDS(on) ≤ 100 160 7.0 V A mΩ TO-247 (IXTH) Symbol VDSS VDGR VGSM ID25 IIDLRMMS IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS TJ ≤ 175°C, RG = 5

IXTQ160N10T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 °C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - 42V Power Bus - ABS Systems DC/DC Converters and Off
