IXFR90N30 N-Channel Power MOSFET

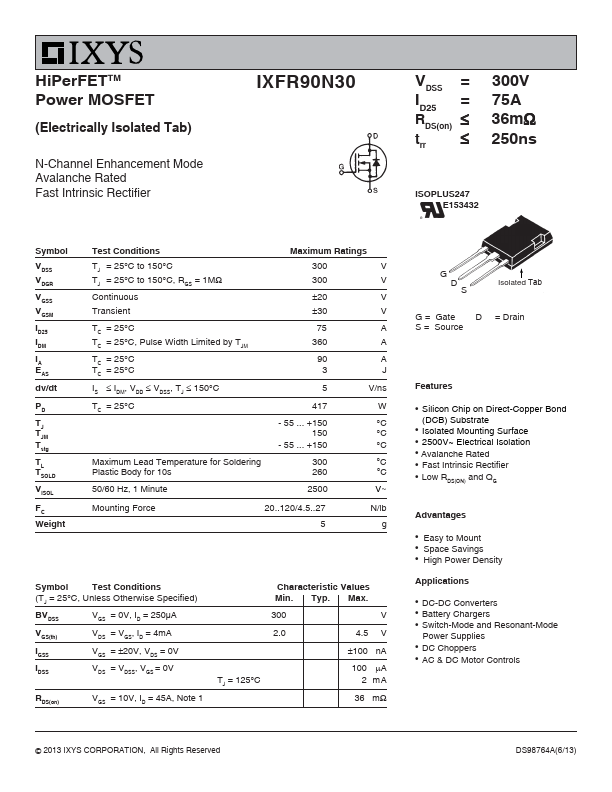

HiPerFETTM Power MOSFET (Electrically Isolated Tab) N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier IXFR90N30 VDSS = ID25 = ≤ RDS(on) trr ≤ 300V 75A 36mΩ 250ns ISOPLUS247 E153432 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C Maxim.

IXFR90N30 Features

* z Silicon Chip on Direct-Copper Bond (DCB) Substrate z Isolated Mounting Surface z 2500V~ Electrical Isolation z Avalanche Rated z Fast Intrinsic Rectifier z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z DC-DC Converters z Battery Chargers z Switch
