IXTP08N100D2, IXTY08N100D2 Datasheet - IXYS

IXTP08N100D2 Power MOSFET

Depletion Mode MOSFET N-Channel IXTY08N100D2 IXTA08N100D2 IXTP08N100D2 D VDSX = ID(on) >  RDS(on) 1000V 800mA 21 TO-252 (IXTY) G S G S D (Tab) TO-263 AA (IXTA) Symbol VDSX VGSX VGSM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C Continuous Transient TC = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque (TO-220) TO-252 TO-263 TO-220 Maximum Ratings 1000 V 20 V 30 V 60 W - 55 +150 C 150 C - 55 +150 .

IXTP08N100D2 Features

* Normally ON Mode

*  International Standard Packages

* Molding Epoxies Meet UL 94 V-0 Flammability Classification Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* Audio Amplifiers

* Start-up Circuits

IXTY08N100D2_IXYS.pdf

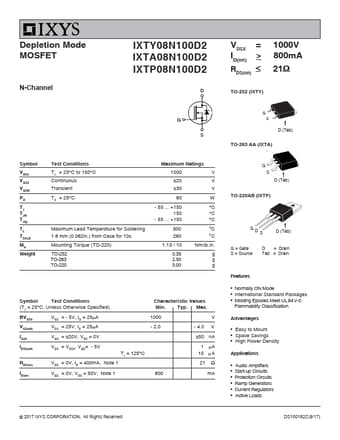

IXTP08N100D2 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTP08N100D2, IXTY08N100D2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTP08N100D2, IXTY08N100D2

Manufacturer:

IXYS

File Size:

278.67 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTP08N100D2, IXTY08N100D2.
Please refer to the document for exact specifications by model.
